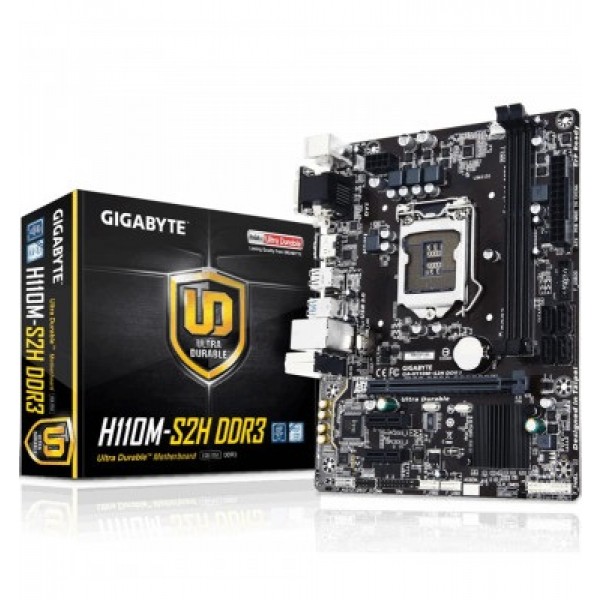

Placa Mae Gigabyte H110M-S2H DDR3 (LGA1151/DDR3/HDMI/DVI/VGA) - PN # GA-H110M-S2H DDR3

Disponibilidade: Fora de estoque

R$ 517,10

Em até 12x de R$ 43,09 Sem Juros

Clique aqui para exibir/ocultar Parcelamento

R$ 465,39
no boleto ou depósito bancário (desconto de 10%)

Você ganhará 517 Pontos com este produto

Avise-me quando estiver disponível

Convidar Afiliados

Faça login e ganhe Pontos por compartilhar!

Panorama Rápido

Mother Gigabyte GA-H110M-H DDR3 LGA 1151
CPU
Support for 7th/6th geração Intel Core¿ i7/i5/i3/Pentium/Celeron LGA1151 package

Chipset
Intel® H110 Express Chipset

Memória
2x DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3/DDR3L 1600/1333 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8 memory modules

Gráficos Onboard
Integrated Graphics Processor - Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Maximum shared memory of 1024 MB

Áudio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out

LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)

Slots de Expansão
1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)

Interface de Armazenamento Chipset:
4 x SATA 6Gb/s connectors

USB
Chipset:
4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Conectores Internos I/O
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x Clear CMOS jumper

Conectores Painel Traseiro
1 x PS/2 mouse port
1 x PS/2 Keyboard port
1 x D-Sub port
1 x HDMI port
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)

Altura (cm)	23
Largura (cm)	25
Comprimento (cm)	5
Marca	Gigabyte
Código de Barras	4719331838430
NCM	8473.30.41
Cor	Preto
Modelo	Placa Mae Gigabyte H110M-S2H DDR3 (LGA1151/DDR3/HDMI/DVI/VGA) - PN # GA-H110M-S2H DDR3
Peso (Kg)	1.0000
