• JEDEC Standard
• DDR4 Speed Grade : 2400 Mbps
• Unbuffered DIMM : 288-pin
• 16 internal banks; 4 groups of 4 banks each
• Memory Organization : x8 FBGA DRAM chip
• CAS latency : CL17
• Bandwidth : 17000MB/s
• Data bus inversion (DBI) for data bus
• VDD voltage : 1.2V
• VDDQ voltage : 1.2V
• VPP voltage: 2.5V
• Serial presence detect with EEPROM
• PCB height : 1.23 inch (31.25mm)
• RoHS Compliant

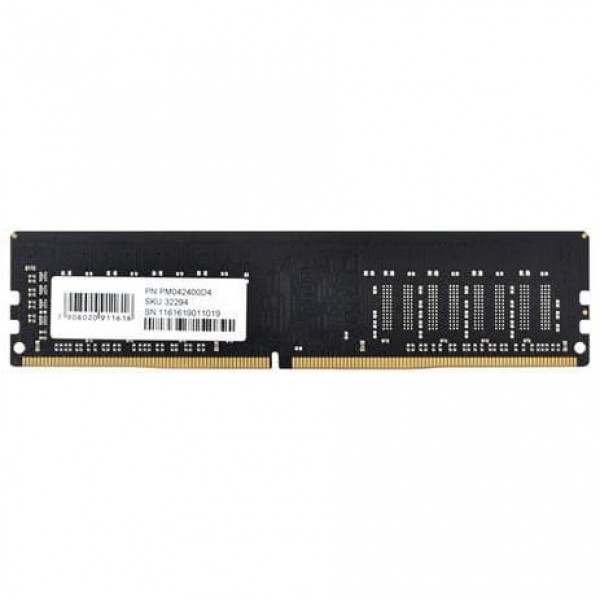

Model Specification - 4GB DDR4 2400 Long DIMM
Working Voltage - 1.2V
CL - 17 cycles
Row Cycle Time (tRCmin) - 46.5ns (min.)
Refresh to Active/Refresh
Command Time (tRFCmin)
260ns (min.) -
Row Active Time (tRASmin) - 33ns (min.)
Maximum Operating Power - TBD W*
UL Rating - 94V - 0
Operating Temperature - 0? - +85?
Storage Temperature - -55? - +100?
